This page focuses only on devices attached to the RemoteRF server over a direct, wired connection. Host-attached devices follow the same schema model, but files would live on the host, not the server, for those particular devices.

Overview

In an effort to make RemoteRF as flexible as possible in the SDRs it supports and the way it can be used, device support is schema-driven. What this means is that, instead of hard-coding device support on every client machine, the server exposes a device interface from Python and then turns that interface into a machine-readable schema description. Then, when using a particular device, a client will generate or refresh their local definition of that device. This all happens behind-the-scenes without the user knowing or having to worry about updating anything on their end, even when the device definitions change server-side.

At a Glance

Conceptual Flow

At a high level, RemoteRF behaves like a dynamic remote RPC pipeline.

  1. The admin declares which physical devices exist on a manifest.
  2. The admin provides a Python schema for each device type.
  3. The server opens each device by calling the schema's factory method.
  4. The schema tells RemoteRF which getters, setters, and calls are safe to expose remotely.
  5. Each client asks the server for that interface description and generates a matching local remote driver automatically.
IMPACT

Why We Built It This Way

The goal of this approach is to make it easy to add new devices and easy to maintain devices.

  • Adding a new hardware type usually means writing a schema file, not patching the server core.
  • One schema can describe many physical devices of the same type through different devices.yml entries.
  • Clients can refresh their generated wrapper when the server schema changes, so admins do not need to push manual client updates.

What Happens at Runtime

In the current implementation, the server and client coordinate like this.

  1. RemoteRF loads built-in drivers and then imports every Python file in ~/.config/remoterf/drivers/.
  2. Each schema class registers itself under a type string such as pluto or hackrf.
  3. The server reads ~/.config/remoterf/devices.yml, looks at each device's device_type, and finds the matching registered schema.
  4. The server calls make_device(**init) for that record. If the device opens successfully, the live hardware object is bound to a schema instance.
  5. The schema introspects every method decorated with @idl_expose(...) and builds a machine-readable schema description with getters, setters, calls, driver_version, and a schema_hash.
  6. When a client needs the device, it calls IDL:get_drivers against the server, receives that schema JSON, and generates or refreshes a local remote module for the device type.
  7. If the schema later changes, the schema hash changes too. The next client-side driver check sees the mismatch and rewrites the generated wrapper automatically.

Note: Clients are not literally downloading the server's raw Python schema file. They fetch the server-generated schema description and then generate their own local remote wrapper from that description. In practice, that still gives you the operational benefit of dynamic client-side updates.

The Two Parts

For typical device setup, there are really two things for an administrator to manage:

  1. the file devices.yml, which lists each of the physical devices connected to the server
  2. the drivers/ directory, which contains many <device>_schema.py files, with exactly one schema file per supported device type

Example: If there were five ADALM-PLUTO SDRs connected to the server, then there would be five devices listed in devices.yml but only one schema file in the drivers/ directory, since they are the same type of device.

Device Setup

File Tree

The inventory file says what devices exist. The drivers/ directory is where many schema files live, with one <device>_schema.py for each supported device type.

  • ~/.config/remoterf/ directory
    • devices.yml edit by hand
    • drivers/ directory
      • <device>_schema.py edit by hand

Host Variation: On RemoteRF hosts, the host-local device inventory lives at ~/.config/remoterf/host/devices.yml. Schema files do not move into that host/ folder; hostrf still loads <device>_schema.py files from the top-level ~/.config/remoterf/drivers/ directory. In practice, list host-attached SDRs in host/devices.yml, but keep custom schema files in drivers/.


Example

Below is an example devices.yml file, followed by a short explanation of what each field means.

devices.yml
yaml
devices:
  - device_id: 1
    device_type: pluto
    name: Pluto Bench A
    init:
      serial: "104473f6"

  - device_id: 2

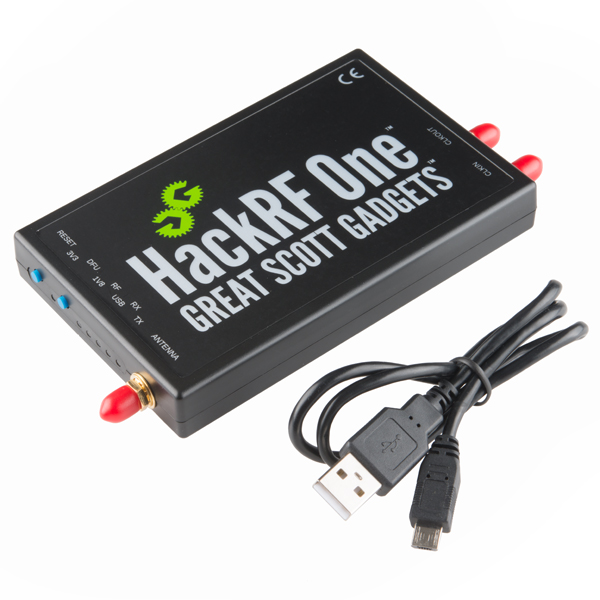

    device_type: hackrf
    name: HackRF OTA
    init:
      serial: "0000000000000000719031ac235bb14a"

Where this file lives: Every machine that owns devices keeps its own devices.yml. The RemoteRF server lists the devices directly attached to the server. Likewise, each RemoteRF host lists only the devices directly attached to that host.

Short Explanation of Each Field
device_id
Required. This must be globally unique across the full RemoteRF network, including the main server and every attached host. Do not reuse the same ID for two different devices.
device_type
Required. This is the unique string that identifies the device schema type, such as pluto or hackrf. It must match the schema's registered device type string. Use the device-specific guide for the exact value your schema expects.
name
Required. This is the human-readable label shown to admins and users. It can be any reasonable string and does not need to be unique.
init
Required. This is the per-device configuration mapping, and its keys will likely be different for different device types. One device might only need serial, while another might use device_index, address, channel, or something else entirely. Check out the Custom Device guide for how the mapping works, and use the device-specific guide for the exact values your schema expects.

Choose a Device Guide

Pick the guide that matches the hardware you want to support. Each guide helps you get or create the right <device>_schema.py, configure devices.yml, and make sure the schema file and device entry are set up correctly so the device works properly.

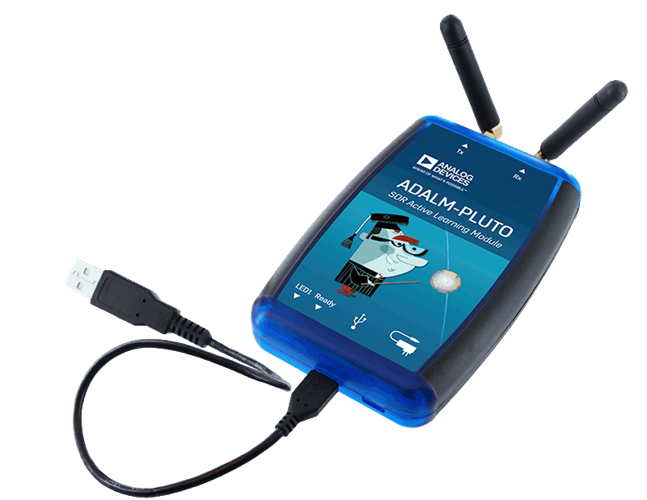

ADALM-Pluto SDR
Native Support
Set Up ADALM-PLUTO

Follow this guide when you want to connect the ADALM-PLUTO, which is natively supported in RemoteRF.
Write Your Own
Set Up Custom Device

Follow this guide when you want to connect a device to RemoteRF that is not natively supported.

After you pick a guide: Once the schema file and devices.yml entry are in place, restart the server so it reloads the drivers and reconnects the device inventory. If you need a file tree reference while editing, see Advanced Configuration.
